Hot Selling FIBBR PJM-U3 USB Optical Cable product description

Our Electronic Product company produces high-quality Speaker Cable and can provide you with high-quality Foreign trade service. You are welcome to contact us to order Speaker Cable and more Electronic Product.

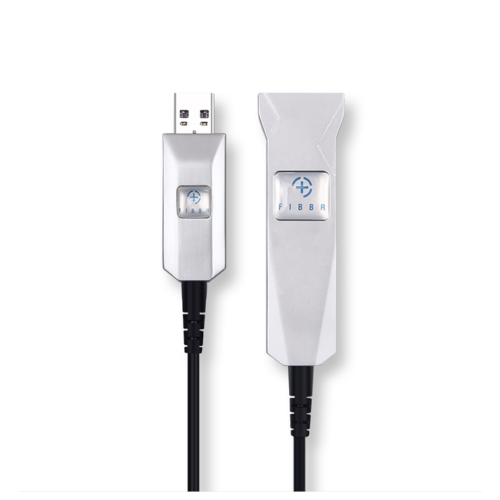

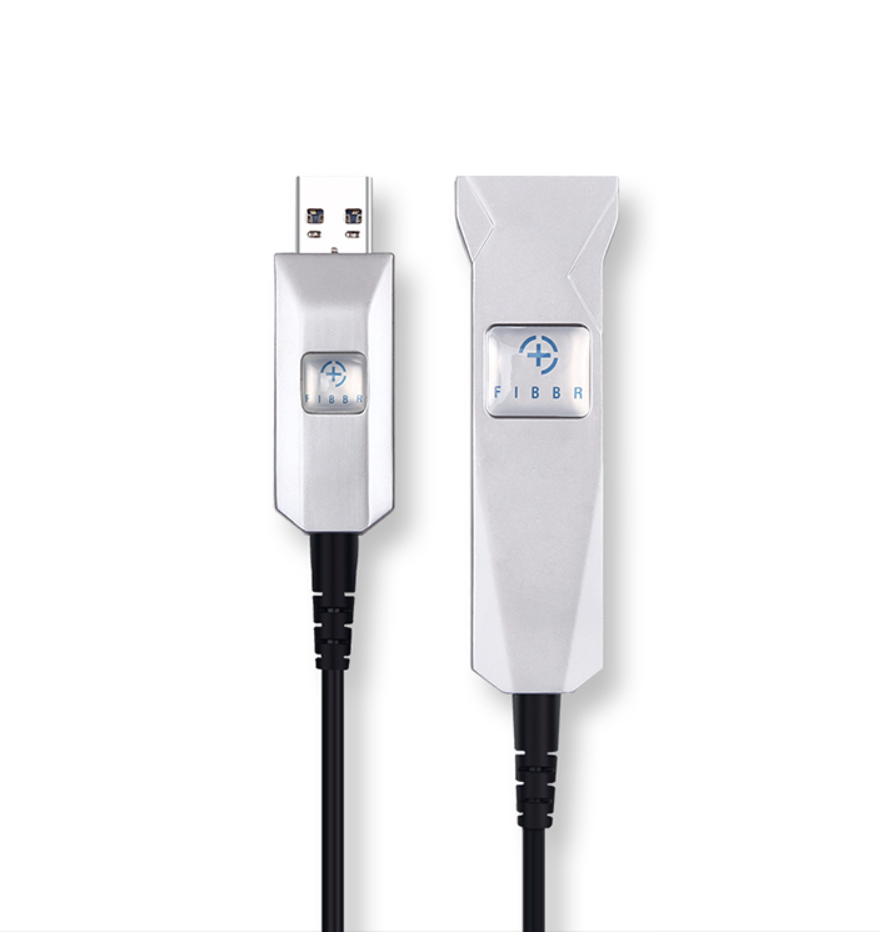

FIBBR PJM-U3 USB Optical Fiber Cable

FIBBR USB Cable A-Male to A-Female Active Extension Cable Cord,High Speed 5Gbps Data Transfer, Use with Playstation, Xbox, Card Reader, Printer, Hard Drive & More (50ft).

Detailed Parameters

• Part Number: F-USB3HM

---




• Application： Machine Vision/Digital Signage and TV Wall/Smart Digital Video Surveillance System

---




• Industry Standard: USB3.1 Gen1

---




• Host Side: USB3.1 Gen1 Standard-A Plug ；USB2.0 Micro-B Receptacle， Auxiliary power supply for device with >2W power dissipation.

---




• Device Side: USB3.1 GEN1 Standard-A Receptacle（with locking screw holes）

---




• Dimension of The End: Host Side：44mm/19mm/13mm；Device Side：82mm/26mm/14.5mm

---




• Cable Diameter: 3.7mm

---




• Option Cable length: 10m/15m/20m/25m/30m/35m/40m/45m/50m

---




• Bend Radius (Dynamic/Static): 80mm/40mm

---




• Tensile Strength (Long Term/Short Term): 150N/300N

---




• Crush Resistance (Long Term/Short Term)/100mm: 500N/1000N

---




• Operating Temperature: 0~50°C

---




• Storage Temperature: -20~70°
