magnetostrictive sensor hydrocylinder sensor MTL3
- Product Attributes
- Packaging & Delivery
- Product Description
- Supply Ability & Additional Information
Product AttributesModel No.: MTL3-800mm
Brand: miran
use: Position Sensor
principle: Inductance Sensor
Output: Analog Sensor, Digital Sensor
Amplifier type: Analog Output
Resolution (bit): Not Applicable
jack: Analog, Rs-485
technology: Magnetoresistive
Features: Not Applicable
application: Industrial Automation
Output function: Not Applicable
Resolution: ≤0.001%FS
Repeatability: ≤0.0005%FS
Packaging & DeliverySelling Units: Kilogram Package Type: Carton Picture Example:
Product DescriptionSensor Product description

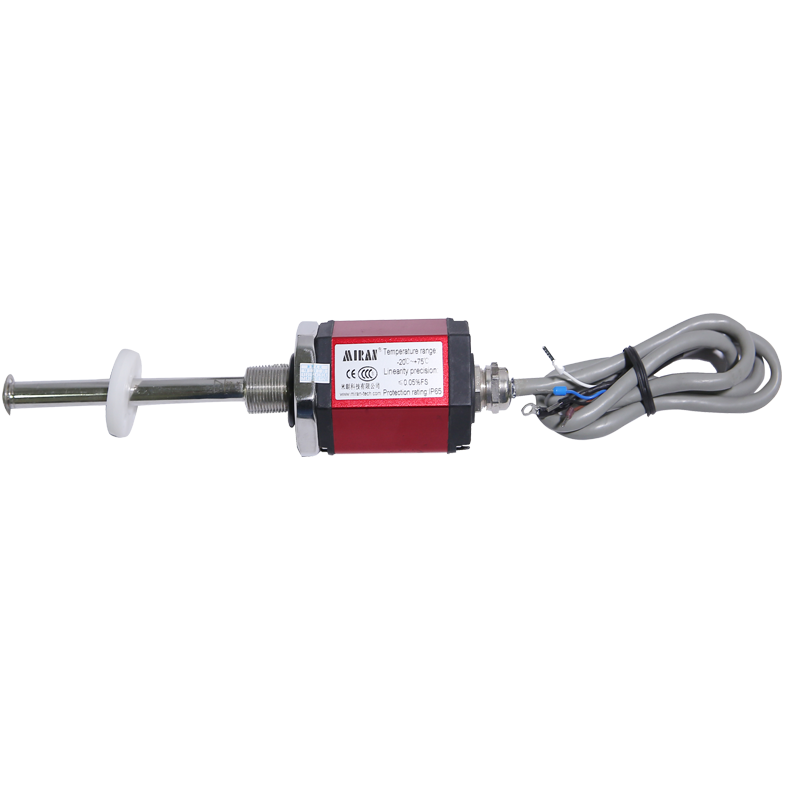

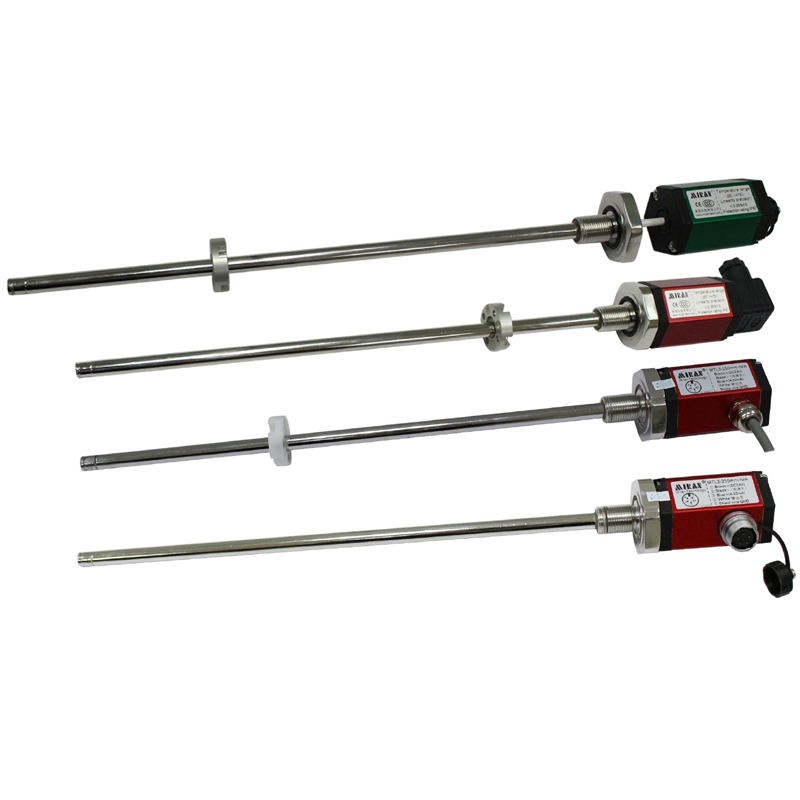

MTL3 magnetostrictive displacement sensor universal cylinder built-in magnetostrictive displacement sensor series, effective travel 75mm ~ 4500mm, both ends of the buffer stroke by the customer definition. The Electronic Product part can be disassembled, convenient to install and maintain, and the head with LED display lamp can directly reflect the working condition of the product. MTL2 voltage, current, RS485 output. The built-in imported waveguide wire by DSP as measurement unit, digital signal processing, high precision, no temperature drift, no contact, life is twenty years; measuring high temperature of 300C DEG, corrosion resistance, pressure up to 64MPa, can be used in most of the oil cylinder displacement measurement applications.The effective stroke of MTL3 is 80mm-3000mm.Aviable output signal is 0-5V 0-10V 4-20mA RS485. It's most used for built-in installation medthod. With widely application environment, especially for most of the oil cylinder displacement measurement applications.(explosion-proof and IP68 grade can be customized)
Welcome to order our sensor，we will provide you with the best quality Foreign trade service.
Sensor Product Details
Range 80mm ~ 3000mm. Output Signal 0~5VDC; 0~10VDC; 0~20mA DC; 4~20mA DC; RS485(Modbus) Linearity ≤0.05%FS Repeatability ≤0.005%FS Resolution ≤0.038mm Lag ≤0.001%FS Temperature Drift ≤0.002%/℃ Working Current ≤16mA (voltage output); ≤35mA (current output), change along with displacement voltage supply +24VDC Vibration 3g, 25Hz, GB/T2423.10 (Vibration Test); 10g, 100Hz, GB/T2423.5 (Bump Test) Load Characteristic ≥3KΩ (voltage output); ≤1KΩ (current output) Working Temperature 0 ~ +70℃,-15℃~+60℃,-25℃~+70℃,-40℃~ +85℃ Material of The Rod 0Cr18Ni9（304),316 stainless steel（customized） Material of The Electronic House 0Cr18Ni9（304),316 stainless steel（customized） Lead wire PVC shield cable (the length:1m, can do as your requirement) Protection grade IP67
Supply Ability & Additional InformationPackaging: Carton
Productivity: 10000pcs/month
Transportation: Ocean,Air
Place of Origin: hubei
Supply Ability: 10000pcs/month
Payment Type: Others
Incoterm: FOB
