Displacement sensor for LVDT

Angular Displacement Sensor Product Details
Overview:
LVDT displacement sensor widely used for shaft diameter runout detection,Valve position testing and control,Vehicle brake wear measurement,Auto parts online inspection,Bridge floor displacement detection,Textile machinery dection,Roll gap measurement,Robot or precise displacement measurement,the positioning of hydraulic cylinder etc. Differential transformer type displacement sensor (LVDT) can be widely used in aerospace, machinery, construction, textile, railway, coal, metallurgy, plastics, chemical industry, scientific research institutions and other industries of the national economy. The sensor is used to measure elongation, vibration, object thickness, expansion etc.
The model LVDT8 has an excellent performance , is suitable for high precision and repeatability measurement in quality control and measurement applications. The measuring head adopts high hardness wear-resistant material (silicon nitride ceramics) and the moving part of measuring shaft adopts precision guide rail. The displacement sensor is equipped with a transmitter which can output standard DC signal. It adopts convenient single power supply +12 ~ 30V DC power supply. The electronic circuit is sealed in 304 stainless steel tube, which can work in the harsh environment such as damp and dust. The standard output signal is 0-5v, 0-10v, 4-20ma or RS485 output which can be used by computer or PLC.

Our Electronic Product company produces high-quality angular displacement sensor and can provide you with high-quality Foreign trade service. You are welcome to contact us to order Angular Displacement Sensor and more Electronic Product.

Angular Displacement Sensor Main Feature:

1. Spring return type displacement sensor ,outer diameter Φ 8 mm

2. The silicon nitride ceramic probe with good wear resistance

3. Measuring range: 0-10mm, high resolution, high repeatability

4. Ac signal power supply, external with high - performance signal demodulator

5. 4-20mA output 2wires and 0-5V 0-10V (3 wires)

6. No sliding contact, long service life

Angular Displacement Sensor Specification

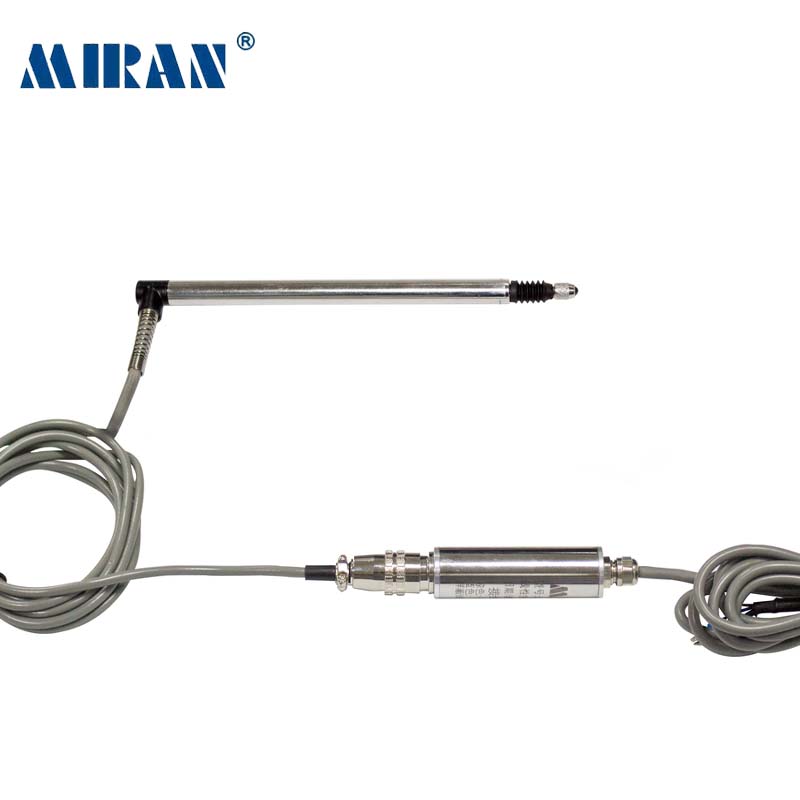

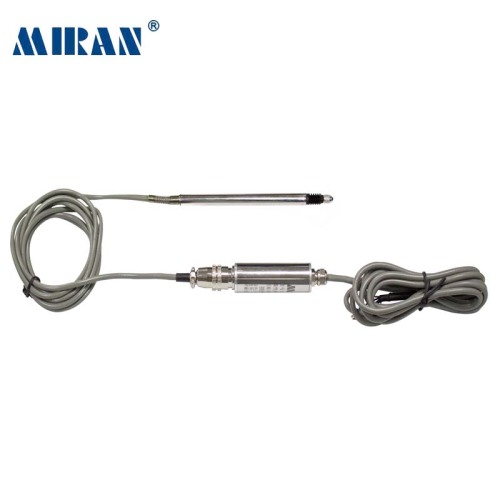

The pen displacement sensor (LVDT8) has an outer diameter of 8mm. Which is a transmitter without a circuit demodulator inside. The external transmitter is connected by aviation plug. The output signal can be 0-5 or 4-20mA through the external transmitter.
