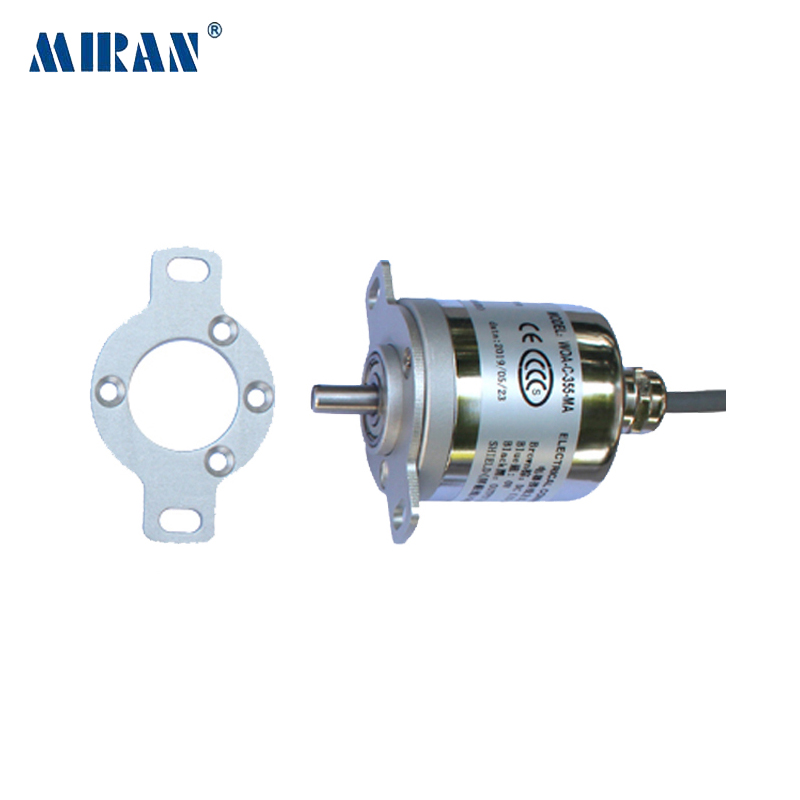

Hall angle position sensor WOA-C

Payment Type:	Others,D/P
Incoterm:	FOB,EXW
Min. Order:	1 Kilogram
Transportation:	Others,Ocean,Air
option:	Angle Range 0～355 Linearity ±0.1%FS Repeatability 0.01 Temperature Drift 9ppm/℃ Working Tempeature -40～+85℃ Ingress Protection IP67

$1-1 /Kilogram

1~1USD

Cantact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: WOA-C

Brand: miran

place of origin: China

use: Position Sensor

principle: Hall Sensor, Resistance Sensor, Ultrasonic Sensor

Amplifier type: Analog Output

Resolution (bit): Not Applicable

technology: Magnetoresistive, Resistive, Lvdt (Linear Variable Differential Transformer)

Features: Bipolar Switch

application: Industrial Automation

Output function: /Fanout, Not Applicable

Output: Digital Sensor, Analog Sensor

jack: Analog, Rs-485

Packaging & Delivery

Selling Units:	Kilogram
Package Type:	Package
Picture Example:

Product Description

Angular Displacement Sensor Product Details

angular displacement sensor Overview

The WOA-C series product is used for angular displacement measurement which is made with the principle of the magnetoelectric.This sensor is widely used in water, oil, gas, vibration, impact and other harsh industrial environment.

Angular Displacement Sensor Main Feature

● Non-contact,High Sensitivity,High Resolution,High Frequence,Low Temperature Drift,Excellent Linearity,etc..

● Absolute position measurement，Can be used to replace optical encoders, rotary transformers, conductive plastic potentiometer.

● Customized angle is allowed during the range 0°～355°，For example:90°、180°、200°...

● Power supply +DC12V-24V ，Output signal options: 0～10V、4～20MA.

Power supply +DC5V ，Output signal options: 0～5V、RS485.

Angular Displacement Sensor Specification

Model	WOA-C
Angle Range	0～355
Linearity	±0.1%FS
Output Signal	(Power Supply:+DC 12～24V) 0～10V,4～20mA
Output Signal	(Power Supply:+DC 5V) 0～5V ，RS485
Repeatability	0.01
Temperature Drift	9ppm/℃
Working Tempeature	-40～+85℃
Max. Rotational Speed	10000rpm
Ingress Protection	IP67

D061640747294104904394c341586dba Htb1hmebhsyh8kjjsspdq6argvxah Jpeg

00de09ef17d241f18a296616df7c3773 Woa C 01 Jpeg

F9f0b4c985a84b55bd9cc6b543e8ed33 Woa C 04 Jpeg

Our Electronic Product company produces high-quality Angular Displacement Sensor and can provide you with high-quality Foreign trade service. You are welcome to contact us to order Angular Displacement Sensor and more Electronic Product.

Supply Ability & Additional Information

Packaging: Package

Productivity: Sufficient supply

Transportation: Others,Ocean,Air

Place of Origin: hubei

Supply Ability: Sufficient supply

Payment Type: Others,D/P

Incoterm: FOB,EXW
