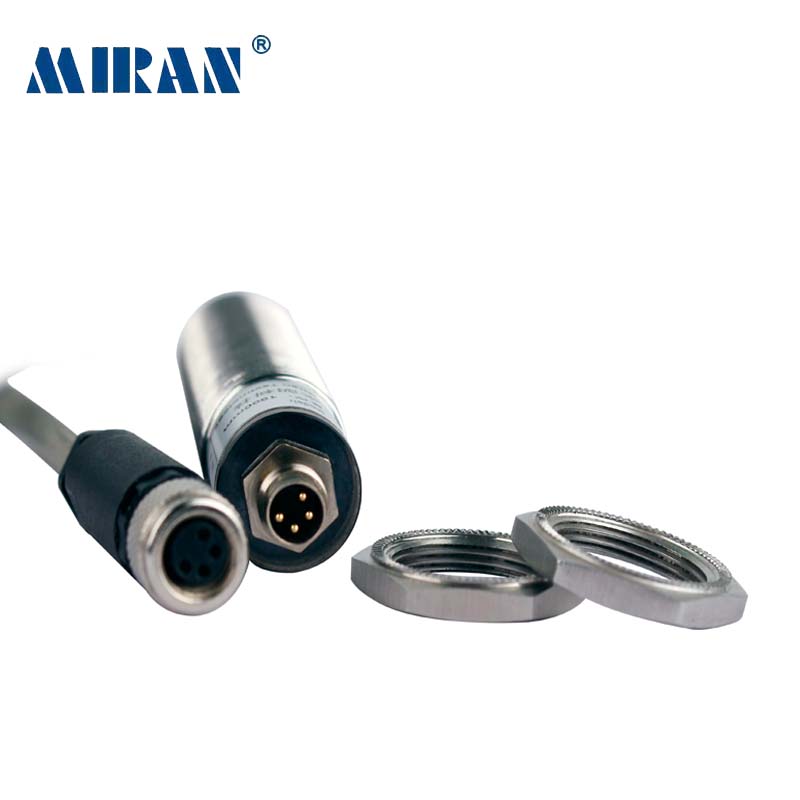

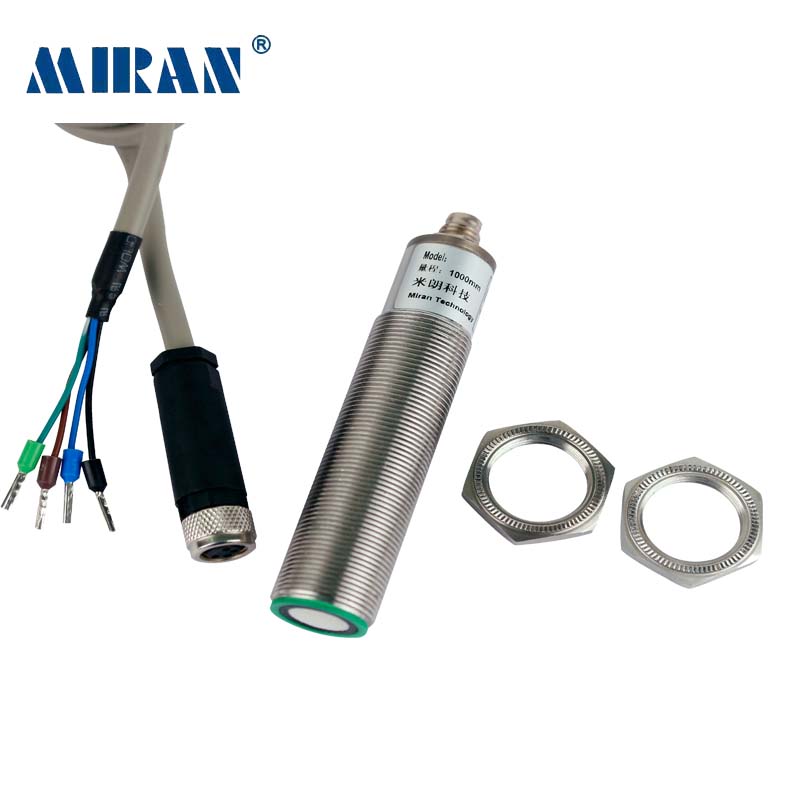

External non-contact ultrasonic displacement sensor MCSB1000

Sensor Product Details

Sensor Application:
Distance measurement, liquid level measurement, height measurement, interval
measurement, size measurement, material accumulation height measurement, filler
level measurement, filler level detection,Diameter and Speed Measurement, Profile
Measurement, Tension Control, Packaging Detection, Object Counting etc.

Sensor Specification:
1. Technical specification：
Measuring range： 70~1070mm
Blind area： 70mm
Standard test board: 300x300mm
Resolution : 0.35mm(max)
Beam angle： 10-15°
Linearity： 0.1%
Frequency: 200KHz
Working voltage： 15~30VDC
Ripple voltage: 5%
Power consumption： 20MA
Output signal： 0~10V
Working Temperature： -20°C~+60°C
Storage temperature： -40°C~+70°C
Line Length： 2m
Response time 100ms
Housing material: Nickel plated brass
Protection: IP67
