ZCJK QTY12-15 block machine
ZCJK QTY12-15 block machine
ZCJK QTY12-15 block machine
ZCJK QTY12-15 block machine
ZCJK QTY12-15 block machine
ZCJK QTY12-15 block machine

ZCJK QTY12-15 block machine

Payment Type:Others,Paypal,D/A,D/P
Incoterm:FOB,CIF,EXW,FAS
Min. Order:1 Set/Sets
Transportation:Others
Model:
  • Dimensions:11500*2800*4550mm
power:
  • 48 KW
option:
  • Cycle time:15-20s
  • Power:48 KW
  • weight:15200 kg
  • Rated pressure:35 Mpa
  • Vibrating force:150 KN
  • Pallet specification:1350x880x30 mm
  • $85500-85500 /Set/Sets

85500~85500USD

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
Product Attributes

Model No.ZCJK QTY12-15 block machine

BrandWuhan Sinoma Construction Technology Intelligent Equipment Co., Ltd.

Applicable industryManufacturing Plant

Out-of-warranty serviceOnline Support, Spare Parts, Field Maintenance And Repair Service

Where to provide local services (in which countries are there overseas service outlets)Kenya, South Africa, Nigeria

Showroom location (in which countries are there sample rooms overseas)Kenya, South Africa, Nigeria

statusNew

speciesHollow Block Making Machine

Brick materialSand

ProcessingBrick Molding Machine

Way of workingHydraulic Pressure

automaticYes

Production capacityOther

place of originChina

warranty period1 Year

Core selling pointEasy To Operate

Brick sizeOther, 400*200*200 Mm

Mechanical test reportProvided

Video factory inspectionProvided

Marketing typeOrdinary Product

Core component warranty period1 Year

Core componentsPressure Vessel, Engine, Gear, Motor, Bearing

Cycle time15-20s

Power48 KW

weight15200 kg

Dimensions11500*2800*4550mm

Vibrating force150 KN

Packaging & Delivery
Selling Units: Set/Sets
Package Type: standard seaworthy package
Picture Example:
Product Description

Building Material Machinery Introduction

ZCJK QTY12-15 is a Hydraulic Fully Automatic Block Making Machine Line. Designed with a vibrating and molding platform, the QTY12-15 concrete block making machine features a light weight and a high vibrating efficiency. This is automatic block forming equipment, which can produce 19,200 blocks in a single 8 hour work day. Block raw material: Sand, Cement, Fly ash, Concrete, Boiler slag, Mountain flour, Industrial Waste.

Building Material Machinery Specification


Block

Hollow block

Solid brick

Porous brick

Pavement brick

Size

390x190x190

240x115x53

240x115x90

200x100x60/80

250x250x60

Moulding blocks

12 pcs/mould

63 pcs/mould

30 pcs/mould

44 pcs/mould

12 pcs/mould

Moulding cycle

15-20s

20-30s

Per hour production

2160 pcs/1h

11340 pcs/1h

5400 pcs/1h

7920 pcs/1h

2160 pcs/1h

Shift production

217280-23040 pcs/8h

93600-124800 pcs/8h

43200-57600 pcs/8h

60000-84000 pcs/8h

17280 pcs/8h

Vibration frequency

50-60 Hz

Block height

50-200 mm

Power

48 KW

Machine weight

15200 kg

Cycle time

15-20 s

Rated pressure

35 Mpa

Vibrating force

150 KN

Pallet specification

1350x880x30 mm

Vibration frequency

3800-4500 times/sub

Overall dimension

11500x4550x2800 mm

Moulding way

Vibration extrusion forming

Items of investment

Items

Quantity

QTY12-15 block making machine

1

Automatic brick conveyor machine

1

Automatic pallet feeder

1

Hydraulic unit

1

Control system (German Siemens)

1

Conveyor belt

1

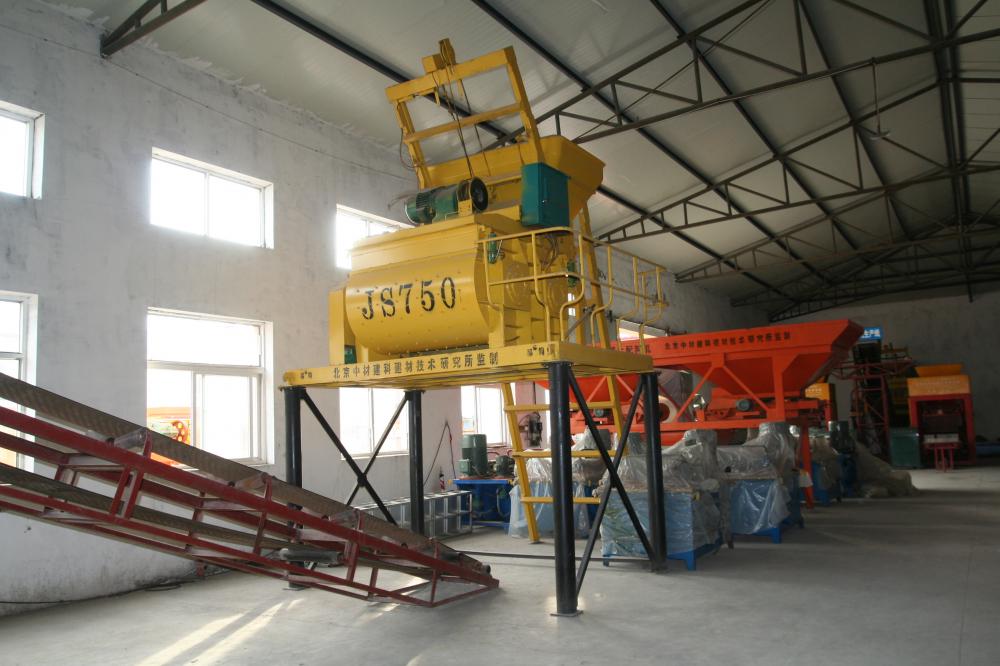

JS750 mixer

1

Elevator

1

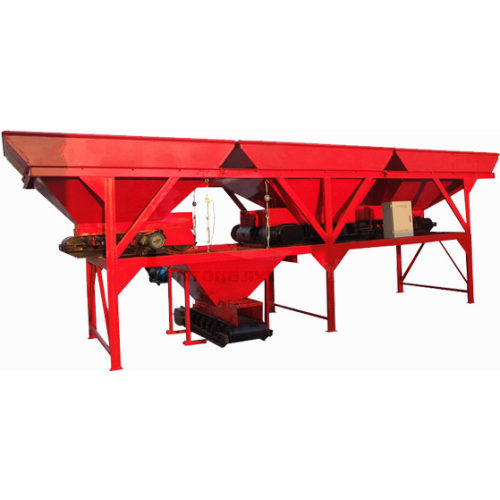

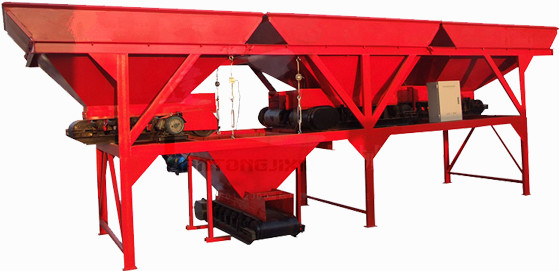

Three-stage batching system(electronic calculation)

1

Free mould

1

Spare parts

1



Note: The above parameters are reference only. Modifications or upgrades are available. Please contact us directly for more information.

Common Advantages:

1.The machine is welded by using special thick-walled rectangle welding method.The transmission shaft and gears are made of alloy steel which entitles them much stronger and more durable.The skip working platform is made of manganese steel, which extends its service life.Other parts of the machine are all in accordance with national standard, besides, we also import spare parts from famous international company, such as Siemens from German.

2.Vibration superiority:Table and Mould vibration work together to achieve products of high density.
3.The upper mould and mould case are driven by gears and racks, Chains which ensures the upper mould and mould case move accurately.
4.There are rubber vibration absorbing shims on both the upper mould and vibration platform,which can reduce energy consumption.
5.Material-feeding box works in the free-vibration oriented mode.In this way ,it reduces the load of mould case and realizes the best feeding of materials.
6.It is easy to modify the vibration force and obtain the best vibration frequency.
7.In the process of sending pallet.The rocker converts its circular motion into liner motion of the connection rod, so pallets will uniformly accelerate and move smoothly.

8.The machine employs the famous international PLC control of Siemens,besides, other electronic elements are also imported from world -famous manufacturers.It can work automatically, semi-automatically and manually according to your preference.



Advantages for QTY12-15 hydraulic fully automatic block making machine line

1. Material feeding system Skip using crutches arm design, flexible propulsion, forced synchronization, will not cause the rigid impact on the whole machine, maximum protection of the rack, improve the service life of the equipment.

Special material feeding system, using forced arch breaking, 360 degree rotation broken arch play a secondary role, skip spindle asynchronous interaction, material feeding is fast and even, if using the lightweight aggregate materials like slag or fly ash the effect is more obvious.

2. Skip back and forth reciprocating movement with two cylinder driving lever mechanism(crutches arm) control, good rigidity and synchronization performance, can ensure product consistency for height and weight.

3. Hydraulic components used in Taiwan AShun brand, makes hydraulic components have quality assurance.

4. PLC and touch screen uses German Siemens products, forming machine and stacking machine share a cabinet centralized control, which has the advantages of simple operation, easy fault diagnosis.

5.To control the pressure head, adopting the technology with independent intellectual property rights, in the vibration molding, when the upper mould press to the block surface it will be in floating state, and can be locked in any position in the non-working state. The combination of pressure and vibration, makes the moulding concrete products with high density and excellent performance.

6. Continuous rotary mandatory distributing mechanism can play a secondary effect of broken arch, the speed is very fast, using modular, production site easy to replace.

Our Machine Made company produces high-quality Building Material Machinery and can provide you with high-quality Foreign trade service. You are welcome to contact us to order Building Material Machinery and more Machine Made Products.


42 Jpeg


Supply Ability & Additional Information

Packagingstandard seaworthy package

Productivity20 units per month

TransportationOthers

Place of OriginChina

Supply Ability20 units per month

Payment TypeOthers,Paypal,D/A,D/P

IncotermFOB,CIF,EXW,FAS
