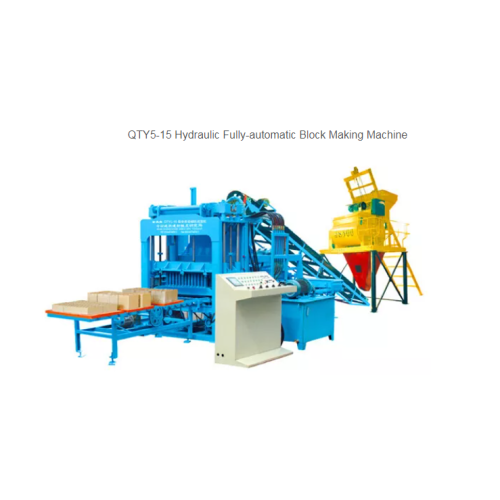

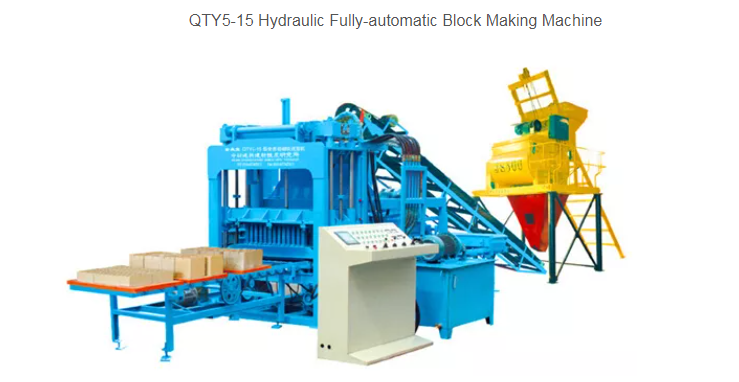

ZCJK QTY5-15 block machine

ZCJK QTY5-15 Introduction

QTY5-15 is one of our company hot-selling automatic hydraulic block making machine. It can be used to make various types of porous blocks,standard bricks, hollow bricks, paving blocks,curb stones, grass land bricks and so on by changing mould. Equipped with Siemens PLC program control and screen display, it can operated easily. Using international famous hydraulic system which can make the whole system more stable and durable and easy for maintenance. ZCJK QTY5-15 block machine, it is a large scale block machine, it can make 34,560 pcs of pavers per 8 hours, or 67,200 pcs of standard bricks per 8 hours.

Specification

Items of investment

Features of QTY5-15 block making machine

1, Rack material: The machine frame uses the thick wall rectangle welding special Welding, the structure is durable. My unit used steel is produced by Shougang, equipment service life of more than ten years.

2, Out of the Brick machine: My unit uses the motor to drive the triangular belt to send out brick machine, some manufacturers out of the brick machine without motor transport, so easy in the process of the Brick Board and board collision, resulting in a freshly made brick fragile, especially hollow blocks.

3, Rocker-type feeding plate machine; the principle of my unit plate feeder is that the motor drives the reducer to swing back and forth, using crank linkage to turn the crank's circle movement into a straight line reciprocating motion of the walking frame, to ensure that the pallet is stationary when it is set to stop,

4, No impact, smooth brick. The pallet pusher is a fine casting, which is of high precision, no card board, durable, not easy to wear and beautiful.

5, Demoulding synchronization mechanism: The use of swinging arm will be two demoulding cylinder connected to achieve a stable synchronization of the effect, the pressure head, mold box in the upper and lower positions are set screw limit device. Easy to improve the mold, the high consistency of the product

6, Skip Rod: Integral steel castings, rugged, general manufacturers are welding parts, easy to break

8, Car control mechanism: The main advantages of this device are: 1, and the mainframe connected as a whole, enhance the stability of the equipment. 2, can be suitable for the production of different molds. 3, adjust the skip time is very short, just loosen 8 high-strength screws can be adjusted

9, Vibration support beam: the use of special thickening plate welding, rugged, for detachable connection, vibration support beam in the operation of equipment, will withstand a strong vibration, general manufacturers with ordinary plates, and the structure is conjoined, if the support beam is broken, only by welding, welding is certainly worse than the overall force performance.

10, Special customized Motor: after running long times, the temperature of motor will be much high, but our heat-resistant motor can work greatly in 130 ℃, the limit temperature of up to 180 ℃, general manufacturers are General Motors, Angola high temperature, easy to burn.

Converter motors: used for 60Hz or 50Hz, we already customized 480V, 60Hz, Three phases for Mexico clients before.

12, Automatic control system, The PLC and Touch screen are German Siemens products, with friendly operating panel, and advanced automatic failure diagnosis system.

Electrical parts used in domestic well-known brands, electronic control cabinets through a special custom to prevent leakage, rain, lightning protection, shockproof role.

14, The hydraulic system: the use of international well-known brands, Taiwan Ashun series, the stability of the system reliable, durable, convenient maintenance.

15, Mixer: My unit adopts JS500 double horizontal shaft type forced lifting hopper type mixer, double horizontal axial type forced mixer stirring speed, more even. Some manufacturers use no lifting hopper mixer, so it is not easy to maintain equipment cleaning, and more unsafe.

About ZCJK block machine

ZCJK have three block making machine factories in China with 20-year of experience. Have sold to more than 103 countries all over the world.
