ZCJK QTJ4-40 block machine plus JW350 mixer
ZCJK QTJ4-40 block machine plus JW350 mixer
ZCJK QTJ4-40 block machine plus JW350 mixer
ZCJK QTJ4-40 block machine plus JW350 mixer
ZCJK QTJ4-40 block machine plus JW350 mixer
ZCJK QTJ4-40 block machine plus JW350 mixer
ZCJK QTJ4-40 block machine plus JW350 mixer

ZCJK QTJ4-40 block machine plus JW350 mixer

Payment Type:Others,D/A,D/P
Incoterm:FOB,EXW,CFR,CIF
Min. Order:1 Set/Sets
Transportation:Others,Ocean
Model:
  • Dimensions:1200*2200*2200mm+1100*1100*1100mm
power:
  • 9.6KW
option:
  • Cycle time:40s
  • Power:9.6KW
  • weight:1.5T
  • Pallet size:850*540*40mm
  • Dimension:1200*2200*2200mm
  • shift out:Standard brick 240*115*53mm 1248
  • $3800- /Set/Sets

3800USD

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
Product Attributes

Model No.ZCJK QTJ4-40 block machine plus JW350 mixer

BrandWuhan Sinoma Construction Technology Intelligent Equipment Co., Ltd.

Cycle time40s

Power9.6KW

weight1.5T

Pallet size850*540*40mm

Dimension1200*2200*2200mm

shift outStandard brick 240*115*53mm 12480pcs/8h Porous brick 240*115*90mm 5760pcs/8h Hollow brick 400*200*200mm 1920pcs/8h

Product capacityStandard brick 240*115*53mm 26pcs/mould Porous brick 240*115*90mm 12pcs/mould Hollow brick 400*200*200mm 4pcs/mould

Applicable industryManufacturing Plant

Out-of-warranty serviceOnline Support, Spare Parts, Field Maintenance And Repair Service

Where to provide local services (in which countries are there overseas service outlets)Kenya, South Africa, Nigeria

Showroom location (in which countries are there sample rooms overseas)Kenya, South Africa, Nigeria

statusNew

speciesHollow Block Making Machine

Brick materialSand

ProcessingBrick Molding Machine

Way of workingAutoclaved Aerated Concrete

automaticYes

place of originChina

warranty period1 Year

Core selling pointEasy To Operate

Brick size400*200*200 Mm

Mechanical test reportProvided

Video factory inspectionProvided

Marketing typeOrdinary Product

Core component warranty period1 Year

Core componentsPressure Vessel, Engine, Bearing

Packaging & Delivery
Selling Units: Set/Sets
Package Type: standard seaworthy package
Picture Example:
Product Description


Machine Made Introduction:

This small block machine was created to meet the needs of many investors. It is a cutting processing equipment belonging to building materials machinery. This machine is of sample and compact structure, convenient operation and easy maintenance. It requires little manpower and investment, but high output and fast economic benefits.It is especially suitable to produce standard bricks, the strength of which is higher than that of clay bricks. Various types of blocks can be produced with different molds.Therefore, it is an ideal choice for enterprise with small investment.



Advantages of ZCJK block machine:

Material of the frame: The main frame is made of thick-walled steel, which is bought from China’s Capital Steel Group. The frame is welded by special rectangle welding technology. So it is of durable and solid structure and has at least 10 years’ service life.


Vibration motor: we adopt temperature-resistant motor, and it can work for a long time without failure at the temperature of 130 degree. Even if the temperature is up to 180 degree, it can still normally function, while it is very easy to breakdown for the ordinary motors to work at this high temperature.


Machine Made Specifications:

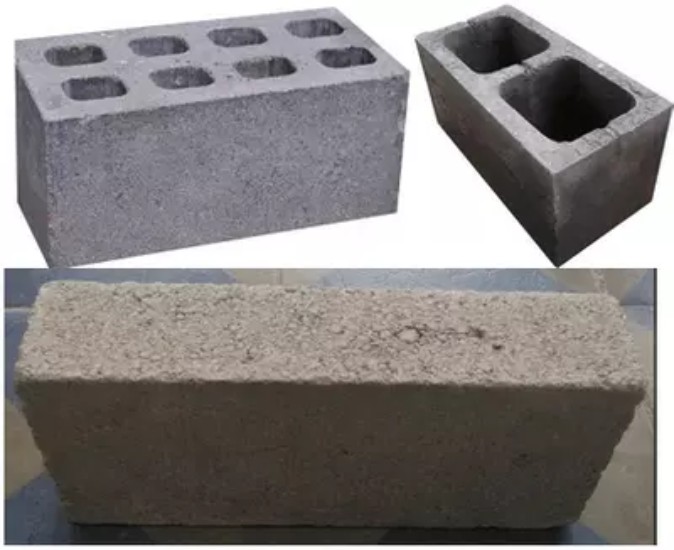

Product capacity

Standard brick 240*115*53mm 26pcs/mould
Porous brick 240*115*90mm 12pcs/mould
Hollow brick 400*200*200mm 4pcs/mould

shift out

Standard brick 240*115*53mm 12480pcs/8h
Porous brick 240*115*90mm 5760pcs/8h
Hollow brick 400*200*200mm 1920pcs/8h

Cycle time

40s

Power

9.6KW

weight

1.5T

Pallet size

850*540*40mm

Dimension

1200*2200*2200mm


Items included for block machine plus JW350 mixer

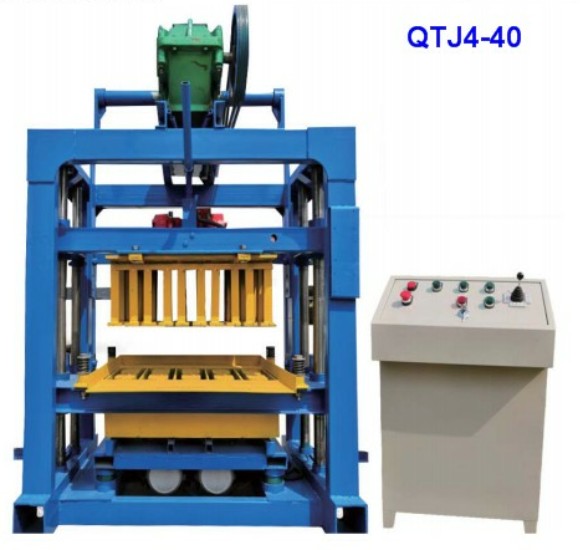

1. QTJ4-40 block making machine
2. One free mould
3. Wheelbarrow
4. Control box
5. Spare parts

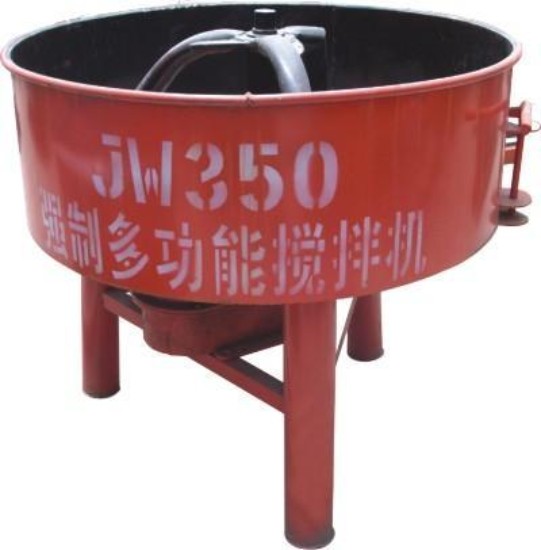

6. JW350 mixer

Our Machine Made company produces high-quality Building Material Machinery and can provide you with high-quality Foreign trade service. You are welcome to contact us to order Building Material Machinery and more Machine Made Products.

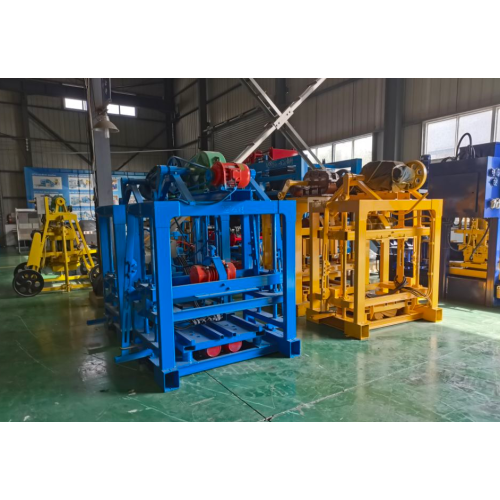

Below are real shoot of the block machine QTJ4-40, which are ready to get painted once passed our inner testing.

1659580192030 JpegJw350 Mixer 8 JpegO 5p Bs 4 Wjr Di Y3 5Zcjk Concrete MixerQtj4 40


Supply Ability & Additional Information

Packagingstandard seaworthy package

Productivity20 units per month

TransportationOthers,Ocean

Place of OriginChina

Supply Ability20 units per month

Payment TypeOthers,D/A,D/P

IncotermFOB,EXW,CFR,CIF
